From the narrowest gap to the fully atrophied edentulous jaw, in hard or soft bone, from single-stage to two-stage protocols, from subgingival to transgingival healing, from immediate to delayed loading – with Xive, you decide which treatment concept to select.
Dentsply Sirona Implants backs its implant systems with a lifetime warranty. Read our warranty terms and conditions.
Xive is based on surgical and prosthetic site-specific requirements, according to your desired clinical approach for dental implant treatment. In support of this approach, Xive provides:
Xive is supported by more than 25 years of dental implant industry experience, including pioneering work and groundbreaking developments in the fields of immediate implant loading and implant surface design.
ActiveBoneControl
High primary stability in all types of bone can be achieved by the patented combination of bone-specific preparation protocol and bone-condensing thread design.
Friadent plus surface
Grit-blasted and high temperature-etched microstructure accelerates rapid bone formation on the implant surface; this results in early osseointegration and high bone-to-implant contact.
Bone care with platform-switch
Integrated platform switch option supports improved preservation of crestal bone levels with concurrent favorable soft tissue conditions.
Easy and versatile prosthetics
A range of prefabricated and patient-specific abutments provides versatility in prosthetics, both on implant and abutment level, including immediate restorations for any possible indication; internal butt-joint connection with self-guiding properties and color-coded or laser-marked components support error-free workflow.
Xive helps you achieve safe and predictable results in all your patient cases. Xive offers implant widths and lengths to match the variations in jaw anatomy. The special thread design guarantees safe and atraumatic implant placement, even in the hardest cortical bone. And the cylindrical implant body optimizes the use of available bone volume, even in anatomically complex situations, making additional grafting procedures often unnecessary.
You can place Xive using either conventional or computer-guided treatment planning. Determining the appropriate treatment planning is based on a comprehensive consultation with your patient, to determine exactly what the patient wants and expects from the treatment, discover any possible contraindications, and to explain the treatment in detail to the patient.
A transparent template can be used to superimpose implant images upon radiographs to help you plan implant placement. Templates are implant-specific and provide different magnifications that correspond to the radiograph magnification.
A thermoformed splint with radiographic balls that can be accurately repositioned in the patient’s mouth. It can be subsequently modified to a conventionally fabricated surgical template. The pre-prosthetic planning is simplified with the Friadent Select components.

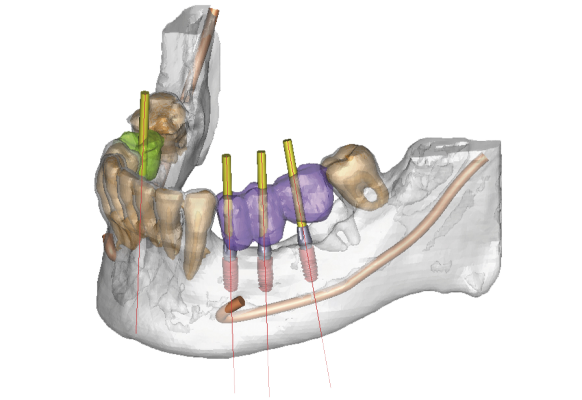

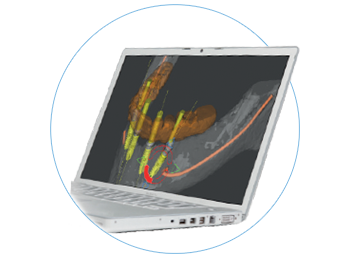

Simplant dental planning software provides you with accurate and predictable surgery options. It will help you to assess your patients’ anatomy and its exact relationship to the proposed restoration. Treatment planning is easily communicated to your dental team, your dental laboratory, and the patient – everyone can see and understand what the treatment entails.
Learn more about Simplant
Whether you are filling the narrowest gap or an edentulous jaw, in hard or soft bone, in a single- or two-stage protocol – immediate loading or delayed loading – you always have an appropriate solution available with Xive.

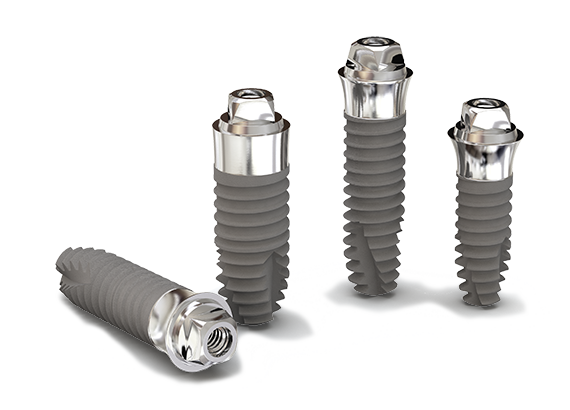

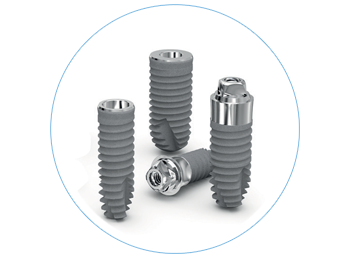

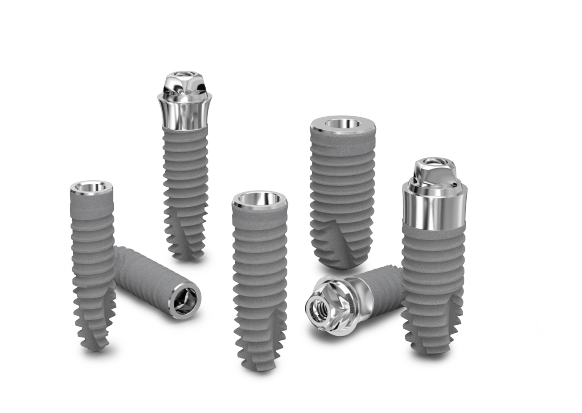

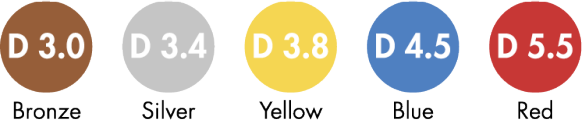

The implant range of Xive includes subgingival Xive S and transgingival Xive TG, in diameters from 3.0–5.5 mm and lengths from 8–18 mm. Additionally, because the endosseous portion is identical, you use the same instruments for site preparation and can determine which implant to place during the surgical procedure.
The implant design of Xive combines a cylindrical implant body and the patented thread design – with a condensing crestal section – to ensure safe and atraumatic implant placement with optimal primary stability in all types of bone.
The unique three-section hybrid with Friadent plus surface promotes stable adhesion of bone-forming cells and induces bone formation, while the slight extension of the implant shoulder tightly seals the cervical gap between bone and implant and makes placing prosthetic components easy.
With Xive, you can easily and efficiently manage and adapt to different conditions and treatment modalities, including:
Lengths: 8–18 mm
Lengths: 8–15 mm

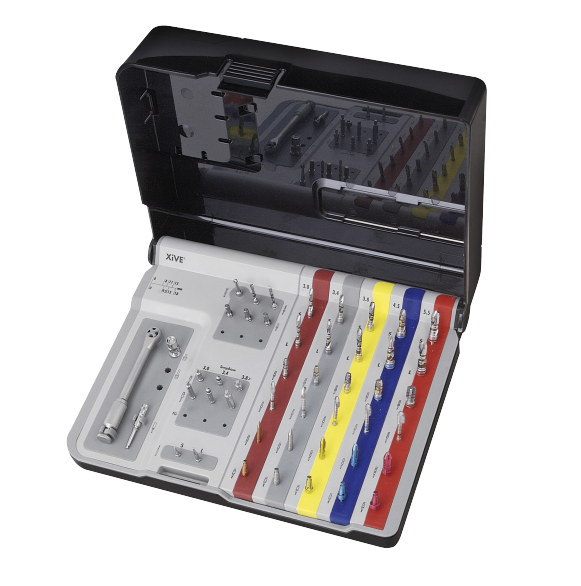

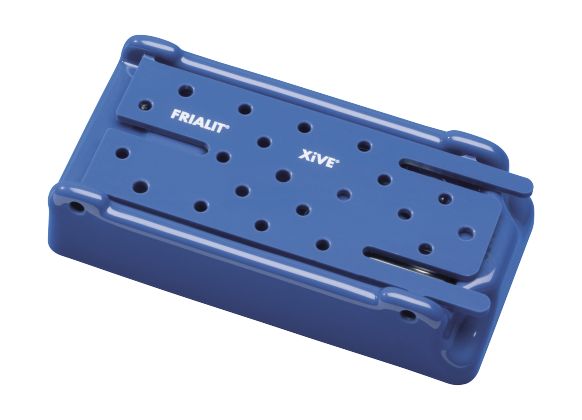

Xive features three pre-assembled modular surgical kits that can be customized with additional modules according to your clinical preferences. Clear pictograms and system-specific color-coding ensures easy user guidance during surgery. All instruments are securely fixed in silicon holders.
Supports the full implant assortment including Xive TG. Includes all instruments required for the placement of Xive Implants in diameters from 3.0–5.5 mm – lengths of instruments S (short) and L (long).
Streamlined content for the most commonly used implants. Includes all instruments required for the placement of Xive Implants diameters from 3.0–3.8 mm – lengths of instruments S (short).
Minimum content only for narrow implants. Includes all instruments required for the placement of Xive Implants diameters from 3.0 mm – lengths of instruments S (short) and L (long).
With Xive, you can modify the surgical protocol during preparation depending on the bone quality. The drilling protocol has been designed to provide you with total control when preparing osteotomies, matching your clinical treatment approach and delivering optimal primary implant stability – thanks to the combination of a bone-specific preparation protocol and condensing implant thread design.
Multiple-use twist drills for Xive are available in two lengths:

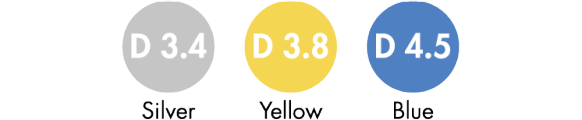

Color-coded rings identifying the lengths of the Xive twist drills, combined groove and laser markers (zebra design) indicating the depths of preparation, make it easy to read the markers during surgery. Two-edged profile drill design provides excellent cutting properties to ensure efficient site preparation.
How it works (see animation)
By varying the preparation of the crestal section of the implant site depending on the type of bone in combination with the condensing implant design, Xive achieves excellent primary stability in all types of bone – atraumatic and gentle in hard bone of density (D I), stable and secure in soft bone of density (D IV).
Once the osteotomy has the required implant diameter, the next step is usually crestal preparation of the bone to adapt it to the clinical situation.
The drilling depth of the crestal drill is varied depending on the bone density, while the osteotomy preparation ensures ideal conditions for not loading the cortical bone during placement of Xive screw implants.
Please note: All products may not be regulatory cleared/released/licensed in all markets. Contact the local Dentsply Sirona sales office for current product assortment and availability.
Xive offers you numerous innovative prosthetic options, including pre-fabricated and patient-specific solutions both on implant and abutment level, supporting immediate restorations in most indications. The deep, internal hexagonal connection provides you with clear and accurate positioning of an abutment with six reversible positioning options.
There are several restorative treatment modalities designed for use with the Xive implant system. These will assist you in delivering the optimal solution to your patients. You can choose from concepts like platform switching that help you sculpture soft tissues; intraoral welding for creating chairside restorations; and fast and esthetic dentures for your patients requiring full-arch restorations.
Xive with the TempBase concept offers the option of creating fixed, esthetically attractive temporary dentures quickly. If initial conditions allow, TempBase can be used for single-tooth restorations and even for more specific, complex restorations:
With an Atlantis suprastructure on Xive TG implants, it is possible to utilize all the benefits of a patient-specific restoration beyond CAD/CAM while profiting from cost-effectiveness. The transgingival implant design eliminates the need for additional abutments, and the one stage surgical procedure is time saving and comfortable for the patient.

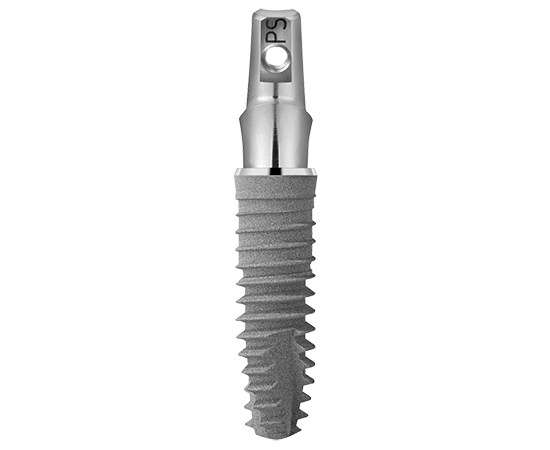

Using the Xive TG implant, you also achieve high primary stability in all types of bone. The prosthetic restoration for Xive TG allows you to choose between an Atlantis suprastructures patient-specific implant suprastructure for a fixed or removable dental implant prosthesis.
Numerous factors can affect the bone level and the health of the soft tissue surrounding a dental implant. Some factors are design-related. The use of diameter-reduced abutments, called Platform-Switch (PS), can provide the following results:
* Atieh MA, Ibrahim HM, Atieh AH. Platform Switching for Marginal Bone Preservation Around Dental Implants: A Systematic Review and Mata-Analysis. Journal of Periodontology 2010;81(10):1350–66.
Individual Esthetic allows you to create highly esthetic results in just a few steps. Use the individual esthetic concept in your daily practice routine for:
Steps for an Individual Esthetic result
Step 1: Individually customizable surgical protocol – Thanks to the patented combination of the bone-specific preparation protocol and bone-condensing thread design, you can achieve outstanding primary stability, even in soft bone.
Step 2: Customized gingiva formers / provisional components – With the Friadent EsthetiCap, you easily achieve an esthetically high-quality provisional crown or bridge.
Step 3: Individual impression – Create an individual transfer post in just a few steps.
Step 4: Customized abutments – Fabricate customized, highly esthetic ceramic abutments with a metal core using TitaniumBase.

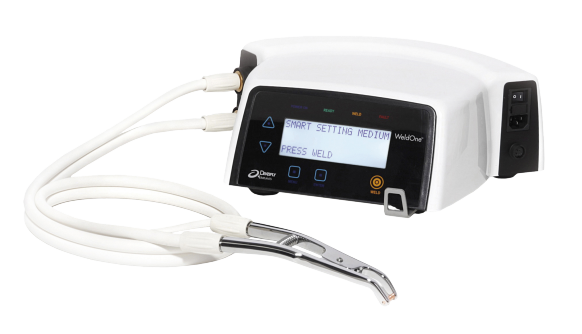

WeldOne provides a stable, passively fitting framework for temporary or durable prostheses for immediate restorations – suitable for immediate or late loading. It is a fast and economical solution to deliver partial- and full-arch restorations on the same day of surgery.
Please note: All products may not be regulatory cleared/released/licensed in all markets. Contact the local Dentsply Sirona sales office for current product assortment and availability.
Your patients rely on you to restore their ability to eat, speak and smile with confidence. With the SmartFix concept combined with Xive you can improve the quality of life of your edentulous patients with a secure and reliable immediate full-arch restoration.
The SmartFix concept used in combination with Xive gives you:
All without compromising reliable treatment outcomes for your edentulous patients.
Simplant computerguided implant treatment delivers precise implant planning and predictable restorative results.
Xive implant system is welldocumented for success in immediate loading, and is supported by a drilling protocol that delivers high primary stability.

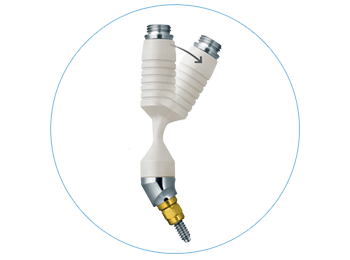

The short and flexible holder allows for easy seating of MP abutments, even when space is limited.
Seating of the MP abutment
Animation showing the easy seating of the MP Abutment using the short and flexible holder.

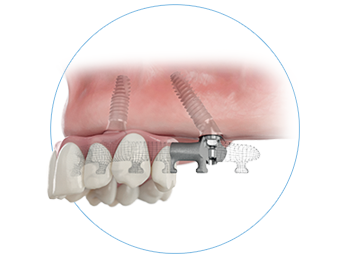

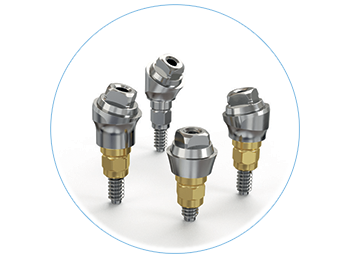

Straight, 15° and 30° MP abutments are optimal for finding the ideal angle for each case. The narrow abutment design facilitates installation while the reduced component height allows for more inter-arch space for prosthetic design.

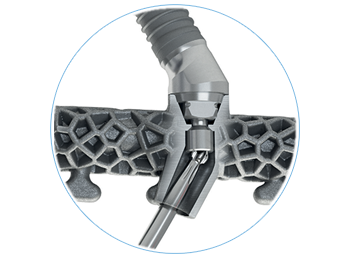

Angling the screw access channel is a unique option of Atlantis bridges and hybrids, promoting ideal esthetics and function as well as simplifying handling during installation and removal of the prosthesis.

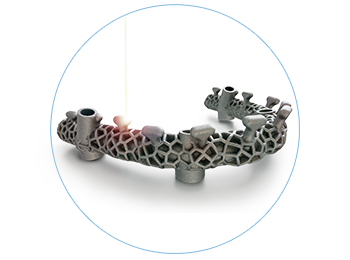

Atlantis bridges and hybrids are produced via additive manufacturing, supporting unique frame design options and individualized retention elements.

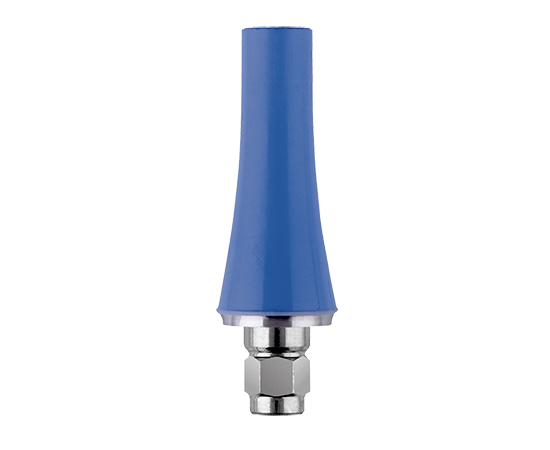

Temporary solutions for Xive offer you customized bases for temporary implant-level restorations and allow you to provide additional soft tissue sculpturing, as needed. The base for the temporary denture is the same shape as the TempBase abutment. Multifunctional – in three ways: as seating coping, for immediate index impression during surgery and as the base for the immediate restoration.

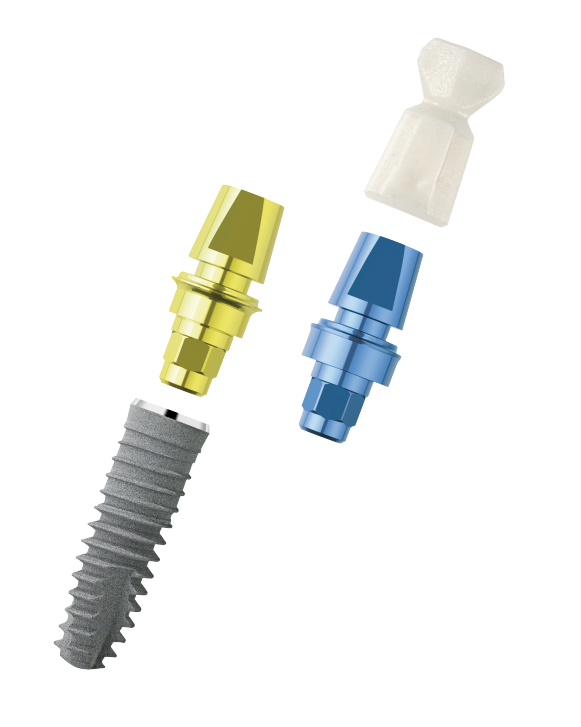

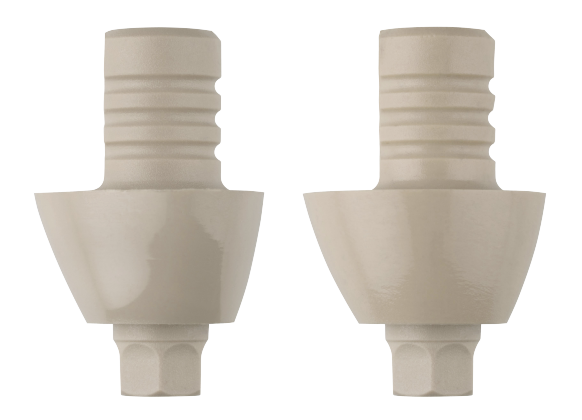

TempBase is part of the unique TempBase concept and comes pre-mounted with every Xive S Plus implant; it offers the option of creating a fixed, esthetically attractive temporary denture quickly if the initial conditions allow this.
TempBase abutment can be used for single-tooth restorations and even for more specific complex restorations:
EsthetiCap is designed for esthetically demanding temporary crowns and bridges:
The cement-retained prosthetic solutions for Xive include patient-specific CAD/CAM abutments, pre-designed and prefabricated abutments in a number of materials, satisfying all clinical situations and indications. Several options are adjustable chairside, while others are produced entirely by your dental laboratory – all designed from the ideal final tooth shape.

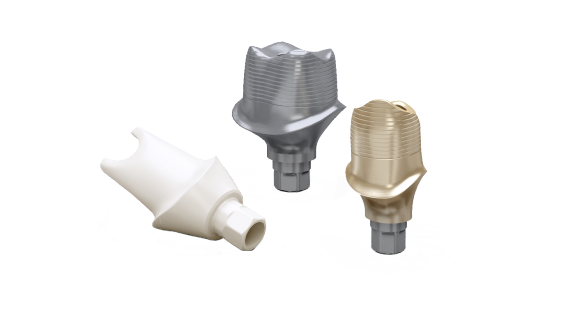

Atlantis abutments are individually designed from the final crown shape using the unique Atlantis VAD (Virtual Abutment Design) software. Each is precision manufactured to provide optimal function and esthetics, without needing chairside modifications.

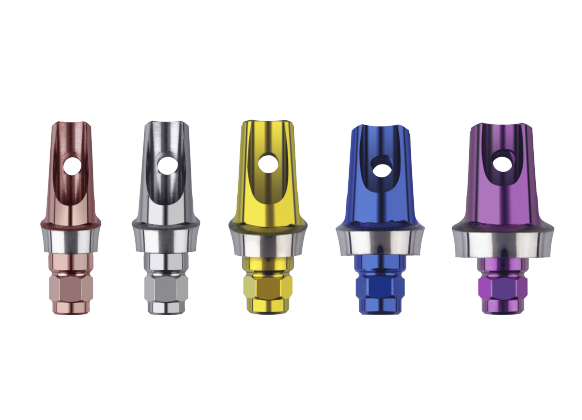

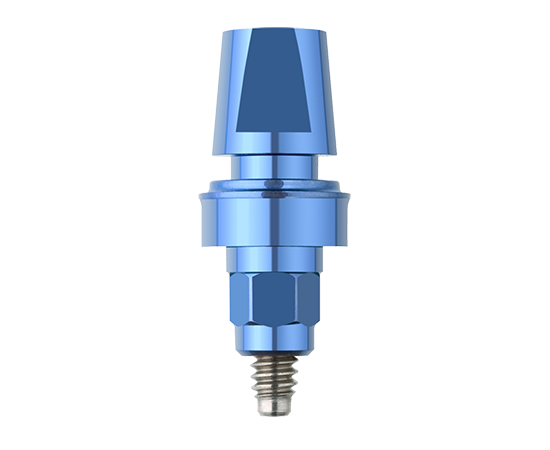

EstheticBase is an anatomically pre-designed titanium abutment. The design and dimensions are based upon the natural dentition:

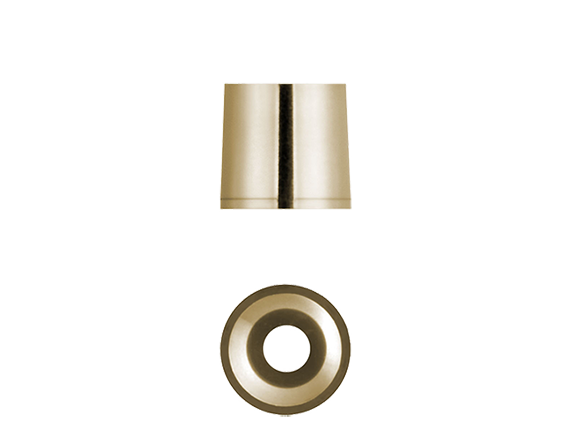

AuroBase is a precious metal abutment individually designed and manufactured at the laboratory. AuroBase is a customizable abutment for use in cases with severe angulation problems, where a taller abutment is needed or inter-occlusal space restricts the use of regular wax-up and casting techniques:

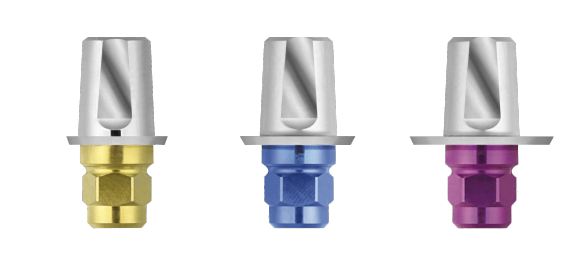

Patients want restorations that come as close to natural esthetics as possible, in the anterior as much as in the posterior regions. TitaniumBase enables the dental technician to fabricate esthetically high-quality titanium core ceramic abutments at the same time as they give all the advantages of a prefabricated, stable implant-abutment connection:

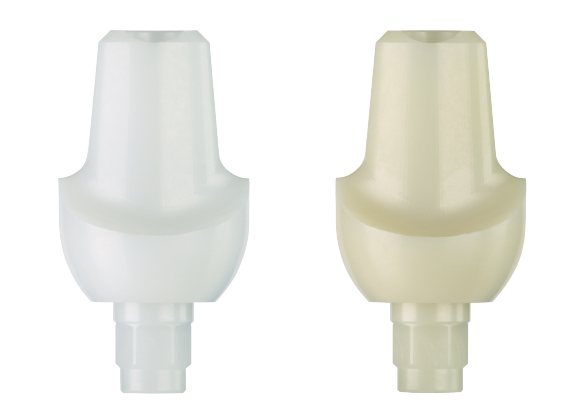

Cercon is a one-piece ceramic abutment – zirconium dioxide – delivering outstanding esthetics and brilliant light dynamics:

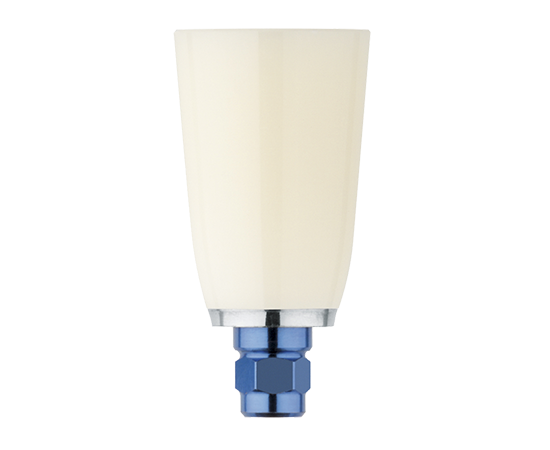

CeraBase is a two-piece ceramic abutment consisting of an aluminum oxide ceramic sleeve and a titanium core. It meets all the demands for an esthetic restoration in the anterior region:
For your screw-retained bridge and bar solutions, Xive uses solid titanium straight or angled abutments for casted constructions, or CAD/CAM restorations on Xive TG. With a CAD/CAM bar denture or bridge on transgingival Xive TG implants, you benefit from an individually fabricated CAD/CAM restoration while leveraging cost-effectiveness.

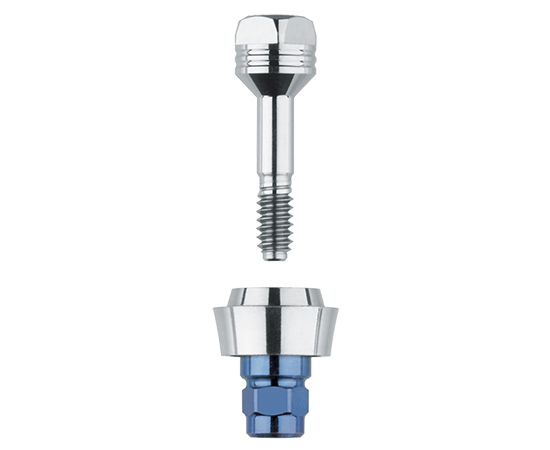

MP abutments is a solid titanium abutment for fabrication of occlusal screw-retained bridge and bar restorations. The MP abutment consists of the MP insert and the matching insert screw. All steps are carried out on abutment level:
There are several alternatives available for creating attachment-retained overdentures for your patients. These solutions include splinted and non-splinted solutions. The top-of-the-line constructions are produced by Atlantis suprastructures and consist of CAD/CAM restorations. For non-splinted restorations, you can choose from several attachment options.
For removable overdentures on splinted restorations in the mandible or maxilla on standard or custom bars in titanium or cobalt-chrome.
For removable overdentures on splinted restorations in the mandible or maxilla on a conventional soldered bar in gold.
For removable overdentures on non-splinted restorations in the maxilla and mandible.
For removable overdentures on non-splinted restorations in the mandible.
Xive is complemented by the appropriate accessories: instruments for implant planning and various concepts for accurate impression taking – open, closed, on implant or mucosa level or even as an immediate index impression using TempBase. Finally, consistent color-coding of all instruments and components will make your work safer and easier.
Incorporating Xive into your clinical workflow is uncomplicated thanks to a number of available surgical and restorative kits.
The Prosthetic Set Mini includes all instruments required for the prosthetic delivery of implant restorations (without MP):

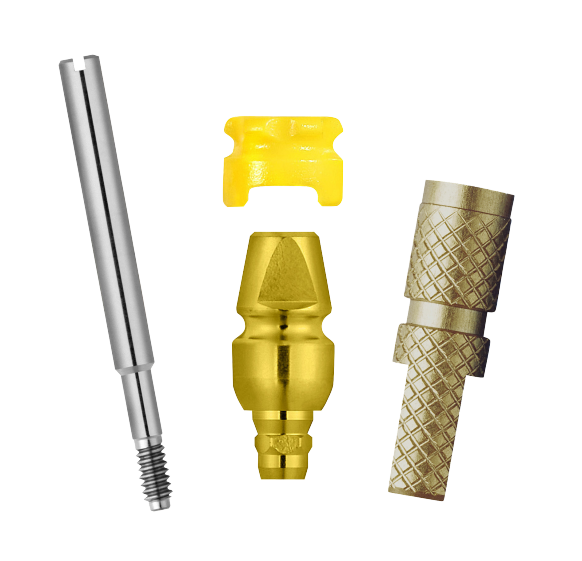

Impression components according to different indications:
The Xive implant system is a well-documented system that has been in clinical use for 15 years. Excellent results on primary stability and immediate loading when using the Xive implant system are available. Click the links below to explore the well documented Xive implant system, where you will find summary of available clinical data as well as synopsis of published key research findings supporting the Xive implant system.
Scientific Highlight, 10 years of clinical reliability with Xive implants
