As part of the digital implant solutions offering from Dentsply Sirona, Atlantis delivers patient-specific prosthetic solutions for all major implant systems providing an excellent foundation for optimal function and esthetics.
Atlantis patient-specific abutments support cement-, single-tooth screw- and friction-retained restorations. Through the use of the patented Virtual Atlantis Design software, each abutment is individually designed.
Incorporating Atlantis into a dental practice and a dental laboratory provides peace of mind while allowing for increased efficiency and profitability.
Connect your team to our open digital workflow
Dentsply Sirona provides digital solutions connectivity is a result of our commitment to deliver consistent, reliable and high quality digital implant solutions.that make it easier for everyone to connect; streamlining the workflow for all your restorations.
It supports the collaboration between all members of the treatment team and Dentsply Sirona and is present throughout the planning and treatment processes.
Connectivity also helps guarantee that you receive exactly what you expect each and every time. Atlantis abutments product line is compatible with a number of lab-based scanners on the market.
Atlantis patient-specific solutions are produced using the latest developments in world-class production technologies, and supported by computer based industrial and medical-device expertise.
The art and craft of dental laboratory procedures are further enhanced through the application of engineering principles, allowing for the design and production of consistent, high-quality, patient-specific implant solutions for all major implant systems.
This video lets us follow the streamlined and optimized workflow of the production of an Atlantis Abutment.
Using Atlantis, you get an open digital solution that provides the greatest flexibility for your restorative implant needs.

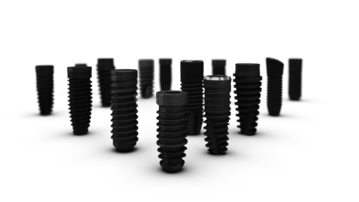

Atlantis are compatible with a broad portfolio of implant connections which means that you can continue to work with your preferred implant system.
Open solution for all major implant systems
With Atlantis we give you the freedom to choose between 85 compatible implant connections such as:
Dentsply Sirona Implants
BioHorizons
Biomet 3i
Camlog
Keystone Dental
Nobel Biocare
Straumann
Zimmer Dental

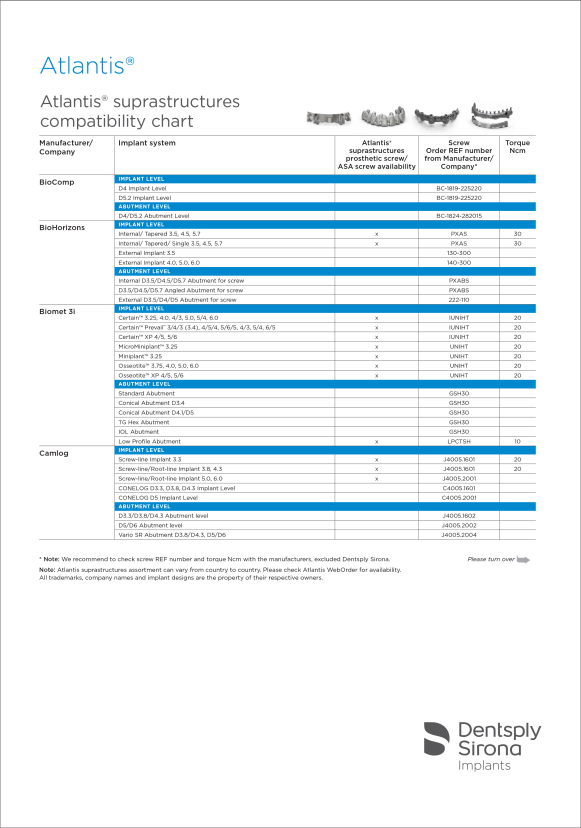

Detailed information about the implant compatibility for Atlantis abutments is presented in the Atlantis abutments implant compatibility chart.
All trademarks, company names and implant designs are the property of their respective owners.
Incorporating Atlantis is an easy way to add a new, premium prosthetic dimension to the solution offerings of both dental practices and dental laboratories. Available for all major implant systems, Atlantis supports streamlined and consistent workflows for all implant-supported restorations.
Additionally, Atlantis reduces time and costs related to inventory management, maintenance, and chairside modifications. It brings simplicity and profitability to the dental practice, while freeing up time for additional cases to be created at a dental laboratory.
Best of all, Atlantis is an open, fully flexible business model that easily adjusts to dental practice and dental laboratory needs and processes, requiring no investment in software or equipment.
Order process

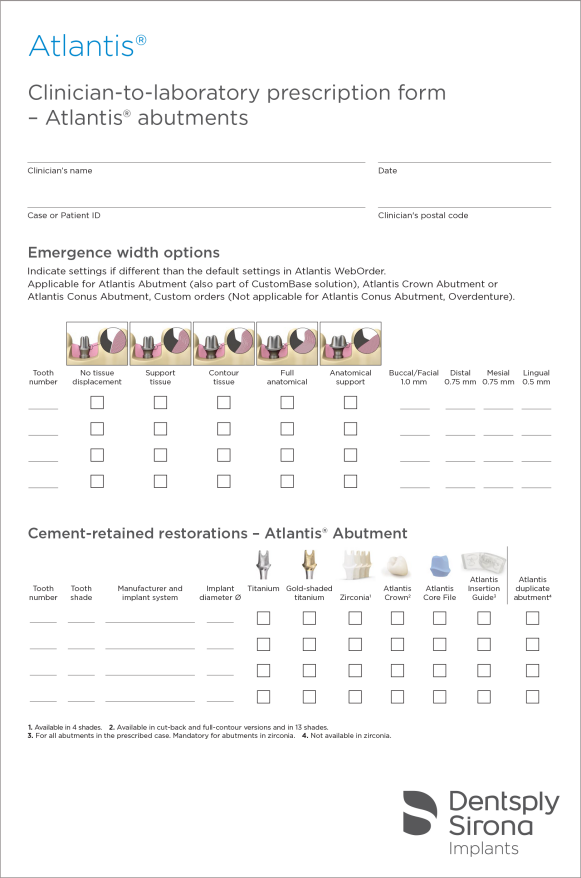

An implant- or abutment-level impression is taken by the clinician and sent to the dental laboratory with a request for an Atlantis abutment.
The order is entered by the dental technician using Atlantis WebOrder. Case models and materials can be shipped to Dentsply Sirona Implants or scanned at the dental laboratory.
All Atlantis abutments are designed by Dentsply Implants using the Atlantis VAD software. Designs can be reviewed and/ or edited in Atlantis 3D Editor before being produced by Dentsply Sirona Implants.
Once produced, Atlantis abutments are returned to the ordering dental laboratory which then produces the final prosthetic solution and sends the completed case back to the clinician.
Cement-retained solutions
Six steps to streamlined success with Atlantis cement-retained solutions
Atlantis WebOrder– easily select and order your products

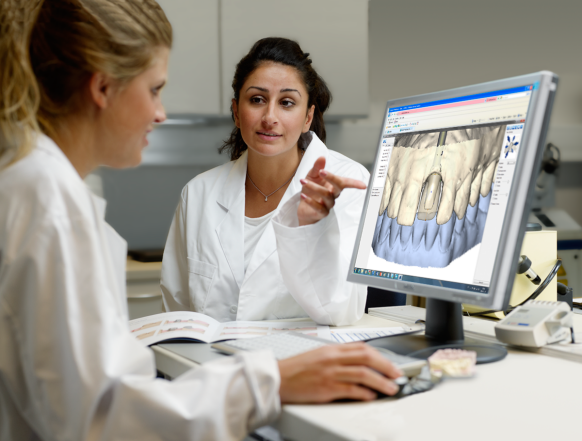

Virtual Atlantis Design (VAD) software– prioritizing function and esthetics

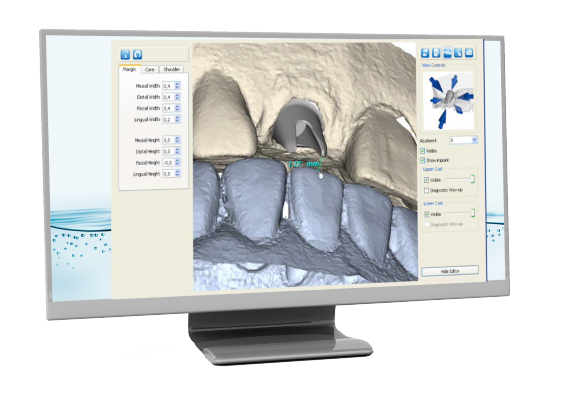

Atlantis Editor– easily view and modify the crown and abutment before production
The complete solution– receive all your patient-specific products at the same time
Finalizing the crown– porcelain veneering or staining according to your preferences
Installation – after cementation the CustomBase solution is ready for installation
Convenience, efficiency and predictability
Atlantis cement-retained solutions are developed to match the way you work, from ordering, through design, to the final solution – keeping you in control from the start.
Focus on what really matters most – function and esthetics. With a streamlined, outsourcing workflow you can eliminate the need to invest in or maintain additional equipment or software.
Products for cement-retained solutions

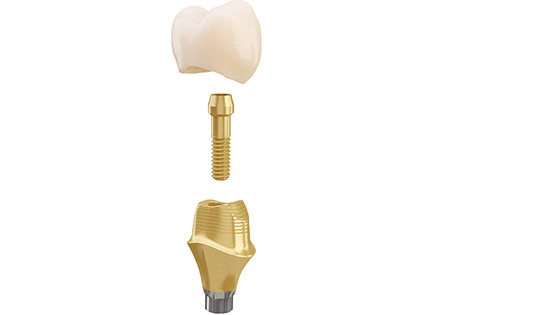

A uniquely designed patient-specific abutment
Customized emergence profile for soft tissue esthetics
Margins designed for easy and safe removal of excess cement
Available in biocompatible materials and compatible with an extensive range of implant connections
For all Atlantis Abutment cases the Atlantis Insertion Guide can be requested with your order.
Designed from the final tooth shape for a more esthetic result, by utilizing Virtual Atlantis Design (VAD) software
For all major implant systems
With simplified restorative procedure
Comprehensive warranty program

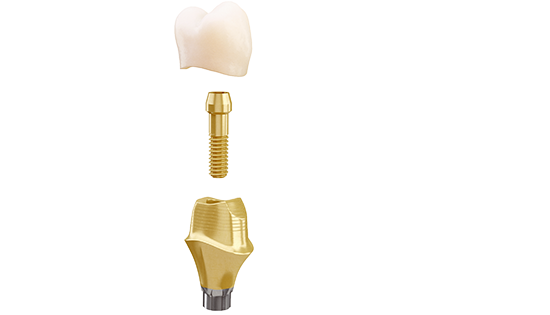

Atlantis Abutment in titanium
Atlantis Abutment in titanium is indicated for cement-retained restorations and milled from a solid, biocompatible titanium alloy blank.
Material
Titanium Alloy 6Al-4V (Grade 5).

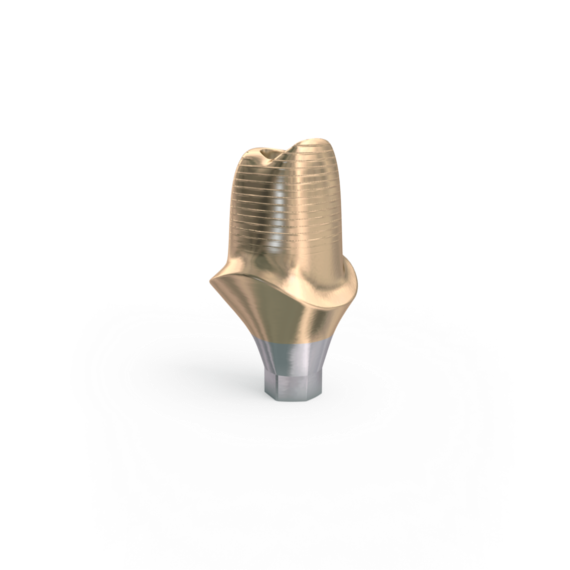

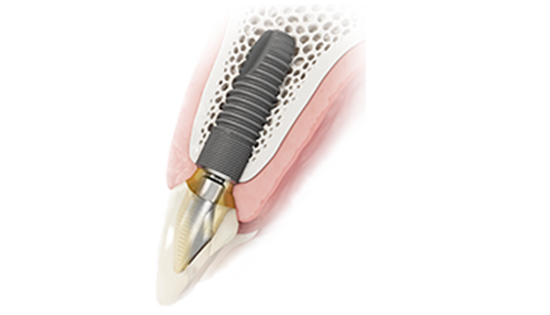

Atlantis abutment in gold-shaded titanium
Atlantis abutment in gold-shaded titanium is indicated for cement-retained restorations. It is milled from a solid titanium alloy blank, titanium Alloy 6Al-4V (Grade 5) and coated with a thin coating of titanium nitride (TiN). The coating gives a warm gold-shaded color, ideal for esthetically challenging cases with thin soft tissue or when using an all-ceramic crown.
The titanium nitride coating covers the entire abutment except for contact area between the abutment/implant and screw/abutment. Ideal for esthetically challenging cases with thin soft tissue or when using an all-ceramic crown.
Material
Titanium Alloy 6Al-4V (Grade 5)
Titanium nitride (TiN) coated
Coating thickness: 0.5–4 μm

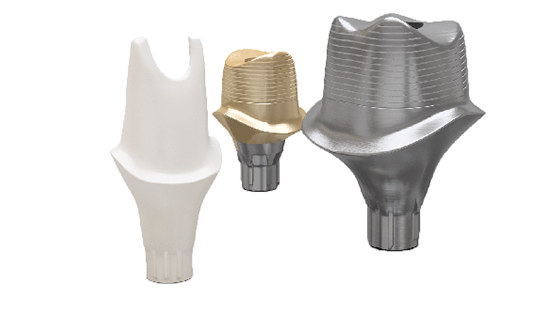

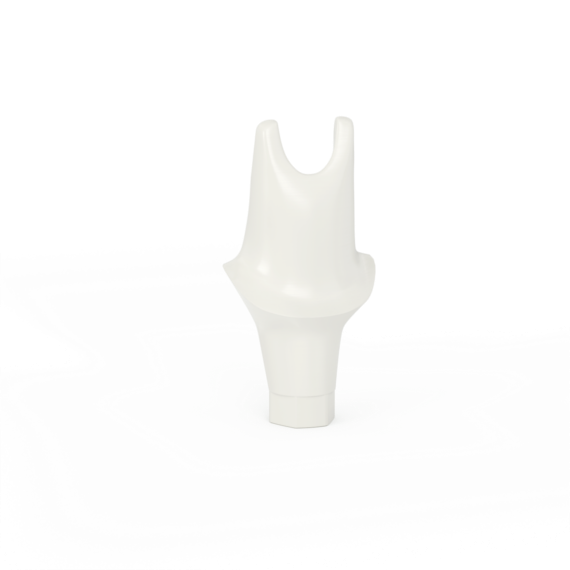

Atlantis Abutment in zirconia

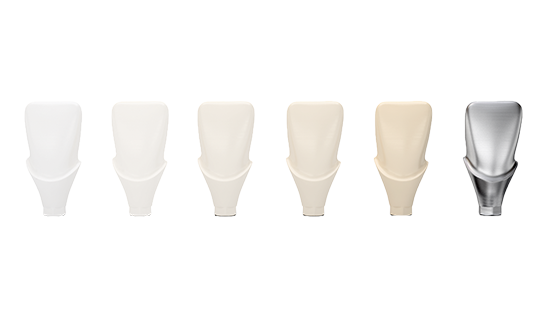

Milled from a solid blank for consistency in the natural-tooth-like color, these all-zirconia engineered abutments provide strength and durability.
Zirconia allows for reduced plaque build-up in comparison to titanium.
Note: Use of zirconia abutments should be carefully evaluated when placed in situations with unfavorable loading conditions. Any modification of Atlantis abutments in zirconia may influence the mechanical strength and create risk of change in material properties (e.g.during grinding). The porcelain/stain should be formulated to have a CTE (coefficient of thermal expansion) that is appropriate for zirconia/
Coefficient of thermal linear expansion: 10.6 x 10-6/K-1
Color: Four shades

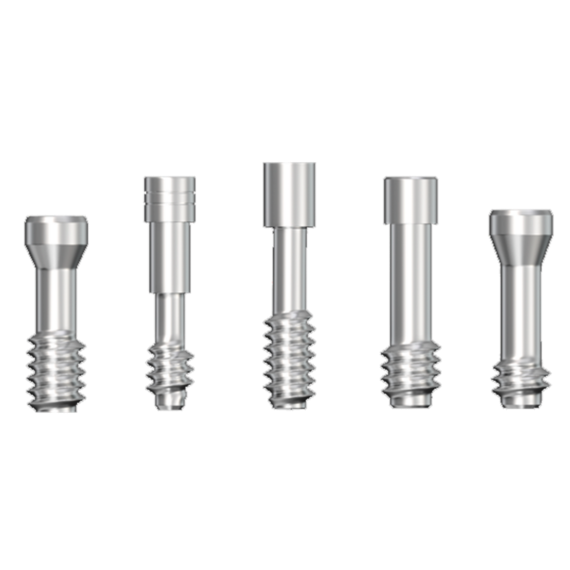

All Atlantis abutments are delivered with its corresponding abutment screw, which is optimized for the design of the internal geometry of the abutment.
Features and benefits
Material
All titanium abutments, titanium nitride (TiN) coated abutments, and screws are made from titanium grade 5 Ti-6Al-4V ELI meeting ASTM standard F-136.
Indications for use The abutment screw delivered with the case should always be used. Abutment screws from the implant manufacturer cannot be used as a replacement for the Atlantis abutment screw provided, unless otherwise noted.

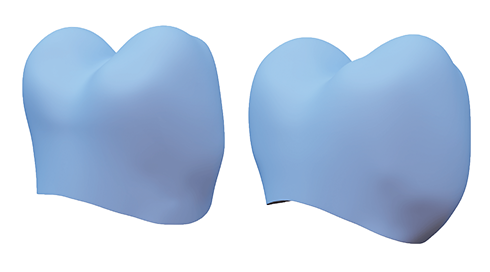

Atlantis Crown, Cut-back
The Atlantis Crown, Cut-back is a patient-specific crown with space for porcelain veneering, intended for use with an Atlantis Abutment. Together, these components function as a full single-tooth prosthetic restoration. The cut-back crown is veneered and finalized by the dental laboratory, and cemented to the Atlantis Abutment by the clinician as the final stage of the prosthetic procedure.
Milled in a monolithic medium translucent zirconia, Y-TZP (yttrium stabilized tetragonal zirconia polycrystals), with a coefficient of thermal expansion of 10.6 x 10-6/K-1.
Available in thirteen different translucent shades of zirconia. These are developed to resemble the shades on the Vita shade guide (refer to shade guide when entering the order in Atlantis WebOrder).
Atlantis Crown, Full-contour
The Atlantis Crown, Full-contour is a patient-specific crown intended for use with an Atlantis Abutment. Together, these components function as a full single-tooth prosthetic restoration. The full-contour crown may be stained and glazed by the dental laboratory, and cemented to the Atlantis Abutment by the clinician as the final stage of the prosthetic procedure.
Milled in a monolithic high translucent zirconia, Y-TZP (yttrium stabilized tetragonal zirconia polycrystals), with a coefficient of thermal expansion of 10.6 x 10-6/K-1.
The crowns are available in thirteen different highly translucent shades of zirconia. These are developed to resemble the shades on the Vita shade guide
Atlantis Crown File
The Atlantis Crown File is a patient-specific “ready-to-mill” digital file of the cut-back or the full-contour crown design, intended for use with an Atlantis Abutment. Together, these components function as a full single-tooth prosthetic restoration.

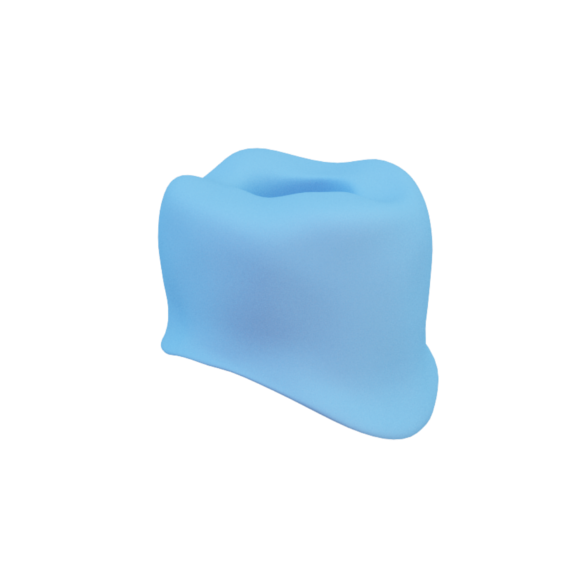

Atlantis Core File is a high precision digital file of the total case, including the outer surface of an Atlantis Abutment and all scanned data such as soft tissue, adjacent teeth and opposing dentition.
Atlantis Core File eliminates the need to scan the abutment and cast and enables the digital design of the coping and final restoration before even receiving the physical abutment ordered.
Atlantis Insertion Guide

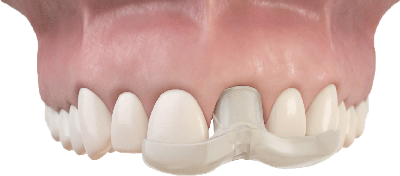

The Atlantis Insertion Guide is a precisely-crafted, 3D-printed device that securely holds an Atlantis Abutment at the correct angle and orientation during installation. The guide can be ordered for both single- and multiple-unit cases.
The insertion guide uses adjacent teeth (for single-unit cases) as an index and ensures precise and reliable abutment placement. The Atlantis Abutment scan data, provided by the patented Virtual Atlantis Design (VAD) is used to create the Atlantis Insertion Guide for a perfect design and fit.
Screw-retained solutions
A premium, quality solution in your way
Atlantis CustomBase solution is the first true patient-specific, two-piece screw-retained solution. It is uniquely designed to give you maximum restorative flexibility, optimized design capabilities and assured final product reliability.
Customized emergence profile for enhanced soft-tissue management
Placement of material junction considering biological principles
Optimized retention and design
Patient-specific design of core height
The first of its kind, the Atlantis CustomBase solution combines a patient-specific abutment and crown design for screw-retained restorations, and is compatible with your choice of implant systems. The crown should be cemented to the Atlantis Abutment extraorally.
Products for screw-retained solutions

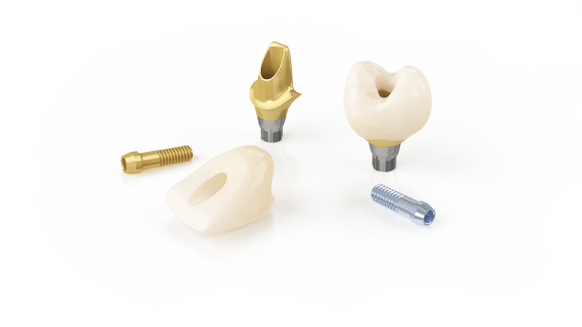

Atlantis CustomBase solution
The Atlantis CustomBase solution is a patient-specific dental prosthetic component consisting of an Atlantis Crown, an Atlantis Abutment and Atlantis Abutment screw. Together, the bundled components function as a full single-tooth restoration for screw-retained restorations.
The crown should be cemented to the Atlantis Abutment extraorally.
The Atlantis CustomBase solution, is available with:
Atlantis Crown
(cut-back or full-contour with screw access hole)
Angulated screw access
(for released interfaces*)
Atlantis Core File
(with screw access location)
Atlantis Crown File
(cut-back or full-contour with screw access)

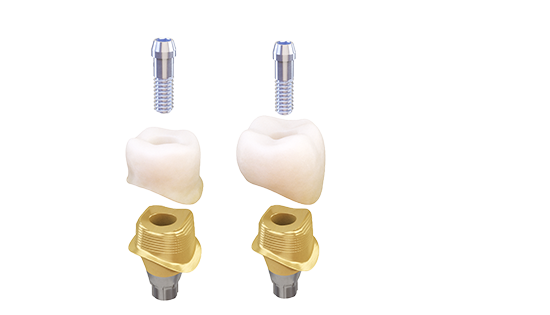

Atlantis CustomBase solution with Atlantis Crown, Cut-back or Full-contour crown
The Atlantis Crown with a screw access hole can be ordered at the same time as the Atlantis Abutment. The crown is available in a cut-back version for porcelain veneering or as a full-contour version for staining and glazing the crown. With a fixed cement space of 40 µm, the crown is cemented extraorally to the Atlantis Abutment to avoid potential complications caused by excess cement. Available in 12 different translucent shades of zirconia and one white zirconia to resemble the shades on the Vita shade guide.

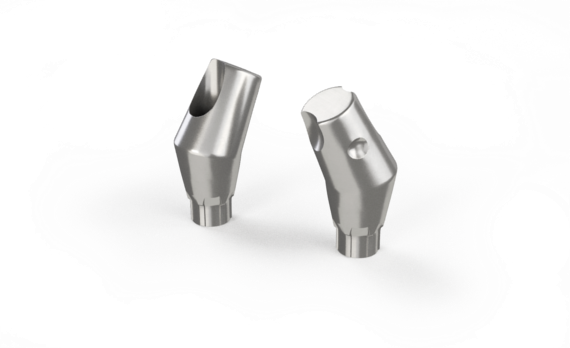

Angulated screw access

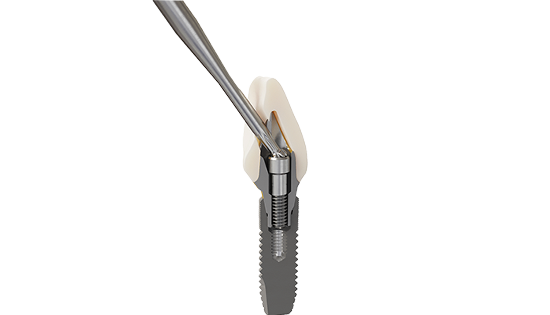

Angling the screw access channel allows the screw access hole to be optimally positioned, improving the esthetics and the installation procedure of the Atlantis CustomBase solution.
Allows the screwdriver access channel to be angled up to 30 degrees off the implant axis. The screwdriver access channel is smaller diameter than the screw head diameter, therefore the screw is captured in the abutment/crown after cementation and should not be removed after the extraoral cementation.

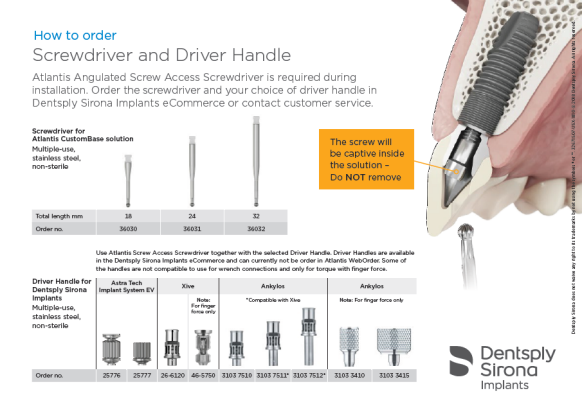

Atlantis Angulated Screw Access Screwdriver is required during installation.
Order the screwdriver and your choice of driver handle in Dentsply Sirona Implants eCommerce.
Atlantis CustomBase solution with Atlantis Core File
Atlantis Core File is a digital representation of the outer surface of an Atlantis Abutment and its surrounding that enables the design of the coping and final restoration even before receiving the physical Atlantis Abutment order. Atlantis Core File can be ordered utalizing Atlantis lab-based scanning or when scanning is performed by Dentsply Sirona Implants.
Features and benefits
Delivers improved prerequisites for:
convenient and effective digitalized workflow
reduced turnaround time of final product
enhanced precision and fit of the crown
Available for 3M ESPE Lava, 3Shape and Dental Wings.
Atlantis CustomBase solution with Atlantis Crown File
The Atlantis Crown File is a patient-specific digital file of the crown design:
Designed using Virtual Atlantis Design (VAD) software
The files are available for viewing and editing using the Atlantis Editor
The crown file is downloaded directly into the milling software of the dental laboratory, and milled in your preferred crown material
Atlantis Crown Abutment is indicated for single tooth, screw-retained restorations. It acts as a base for porcelain or composite application.
Features and benefits
Available in Titanium and five shades of zirconia for a consistent, natural-tooth-like color.
The final restoration is placed using only a single step - requiring no abutment modification or cement.
As a screw-retained solution, it also allows for easy retrieval, if needed.
Friction-retained solutions
Atlantis Conus concept — a conometric solution
A conometric implant-supported dental prosthesis is a solution that uses a tapered cone design to retain a cap on the abutment by surface friction. The telescopic abutment design and manufacturing standards provide a stable yet removable non-resilient prosthesis.
The Atlantis Conus concept is patient-specific, compatible with all major implant systems1, and provides edentulous patients with optimal comfort, ease of use and function.
Redefining stability and comfort
With the Atlantis Conus concept, your patients will receive:
A stable yet removable prosthesis
The perception and security of a fixed restoration
Optimal chewing function and sense of taste
Desirable phonetic function and esthetic results
A prosthesis that is easy to clean and maintain
A cost-effective solution
The Atlantis Conus concept brings simplicity and enhances dental practice profitability by eliminating the time and cost for inventory management and chairside modifications. The abutments are delivered with a mandatory Atlantis Insertion Guide for simplified handling procedures. In addition, Atlantis is also an easy way to add a premium dimension to your clinic’s prosthetic offering.
The concept is composed of patient-specific Atlantis Conus Abutment, overdenture together with prefabricated SynCone caps.
Atlantis Conus Abutment is offered as two separate options with different features:
Atlantis Conus Abutment, Overdenture and Atlantis Conus Abutment, Custom.
Products for friction-retained solutions
Atlantis Conus Abutment – custom in gold-shaded titanium is indicated for removable non-resilient, attachment-retained bridges or overdentures.
Features and benefits
Recommended for cases where a variety of design options are required but still a parallel restorative part is needed.
The coping that fit on top of the Atlantis Conus Abutment custom is produced by the dental laboratory.
Atlantis Conus Abutment – custom in titanium is indicated for removable non-resilient, attachment-retained bridges or overdentures.
Features and benefits
Recommended for cases where a variety of design options are required but still a parallel restorative part is needed.
The coping that fit on top of the Atlantis Conus Abutment custom is produced by the dental laboratory.
Atlantis Conus Abutment – overdenture in titanium is indicated for removable non-resilient, attachment-retained prosthesis. It is recommended for full arch overdenture restorations.
Features and benefits
A conometric solution that provides the unique combination of removable ease and fixed stability.
The abutments are designed to ensure abutment parellelism and to fit SynCone 5° caps, and are delivered with an mandatory Atlantis Insertion Guide.
Scientific evidence
Learn about the excellent results with our individually designed Atlantis abutments and how to achieve simplicity, freedom, esthetics, and reliability when treating your patients. Click the links below to explore the well documented Atlantis portfolio, where you will find summary of available research data as well as synopsis of published key research findings supporting the Atlantis system.
All Atlantis orders are conveniently placed in the Atlantis WebOrder, an online ordering system, available 24 hours and 7 days a week – no investment costs, no need to install or upgrade software.
Entering order data is quick and easy – a single case can be processed in just a minute. Dental technicians play a key role in the order process and naturally have an Atlantis WebOrder account.
Online ordering system
Ordering simplicity creates a consistent workflow
Case data remains easily accessible via digital devices
Become our customer
How get access to Atlantis WebOrder
To start ordering Atlantis solutions, you can either go directly to Atlantis WebOrder and register for an account or contact your local representative for assistance.
Atlantis Editor is an embedded software within Atlantis WebOrder, which allows for viewing and editing of Atlantis abutment and crown designs prior to milling.
This keeps the customers in perfect control of the ordered products.
Atlantis Viewer

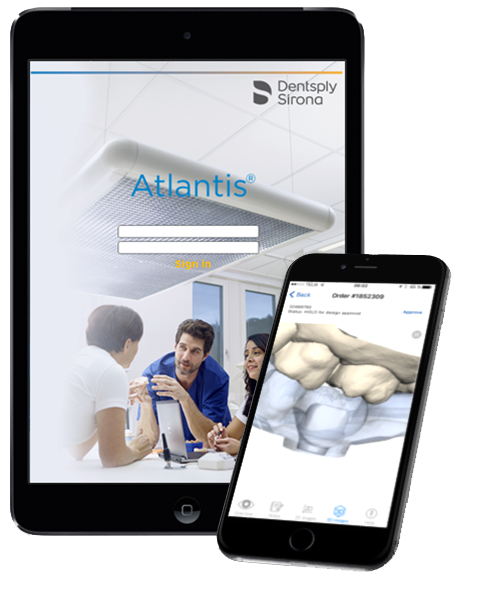

The Atlantis Viewer application for Apple devices such as iPhone and iPad allows you to login to the Atlantis WebOrder account and access your most recent orders
As soon as an order is ready for your design approval, a push notification will be sent to you. The app also allows you to view 2D and 3D images of the Atlantis abutments cases waiting for design approval.
The app is available free of charge in App Store, to install this app simply search for “Atlantis Viewer” in App Store and download to your Apple device.
Contact us
Do you want to know more about Dentsply Sirona Implants and our comprehensive implant dentistry solutions? We are here to support you.
